Owner’s manual

Your Ultimate Guide to Maximizing
Performance and Efficiency

Before you Ride...

We want your first ride to be amazing.
Please scan the QR code to schedule a one-on-one
session with our team to prepare for your first ride and
to activate your product warranty as well.

Schedule Session

A Note from the CEO

A Note from the CEO

I’d like to thank you for choosing CLIP for your biking needs.

We designed CLIP to provide just the right amount of bicycling assistance one typically needs in the majority of urban commutes at an affordable price point with an optimal manufacturing footprint. We like to call it the "common-sense" solution.

Together we are working towards a future where clean, sustainable mobility is the norm.

Thank you for being a part of this journey.

Som Ray

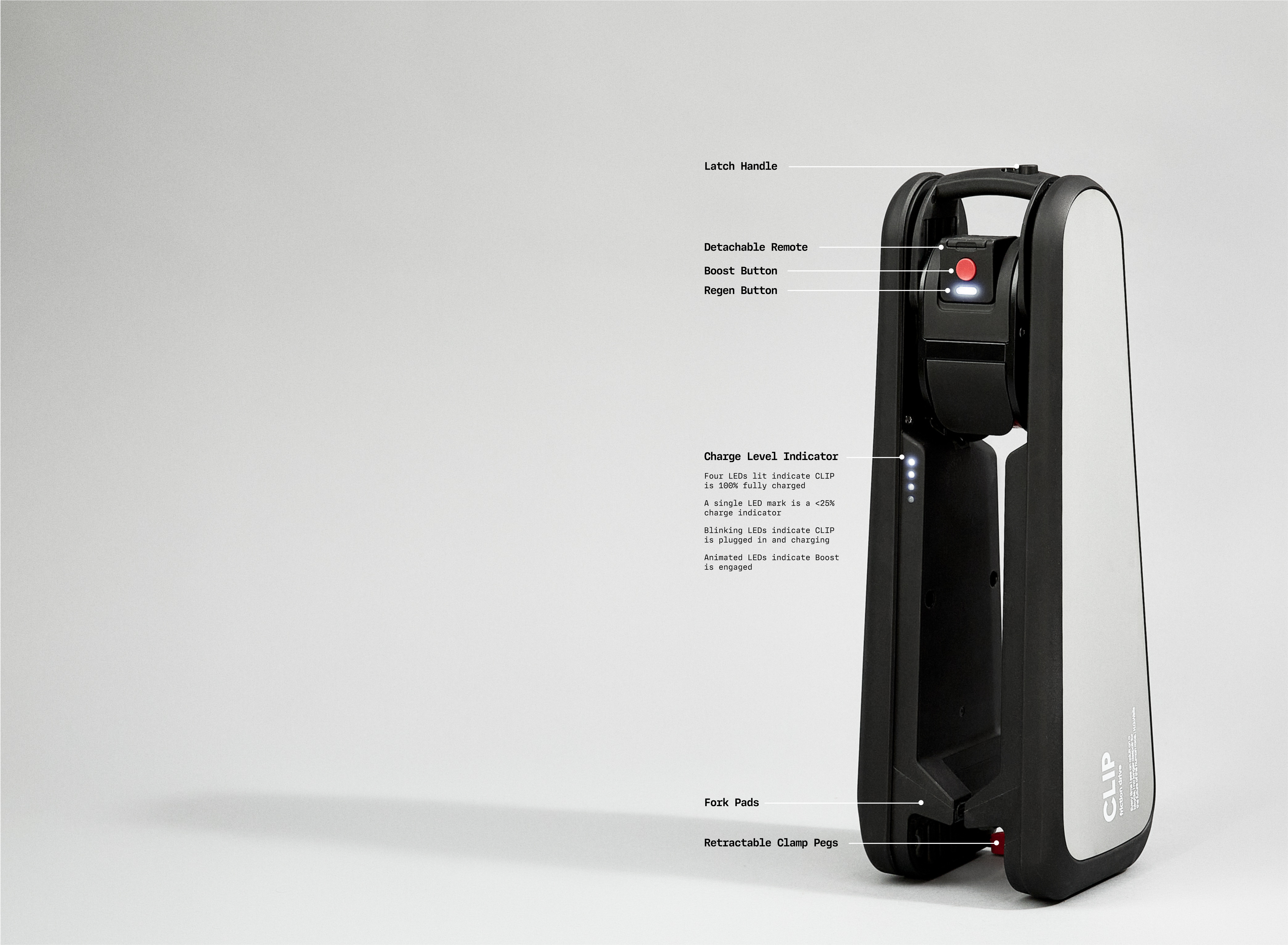

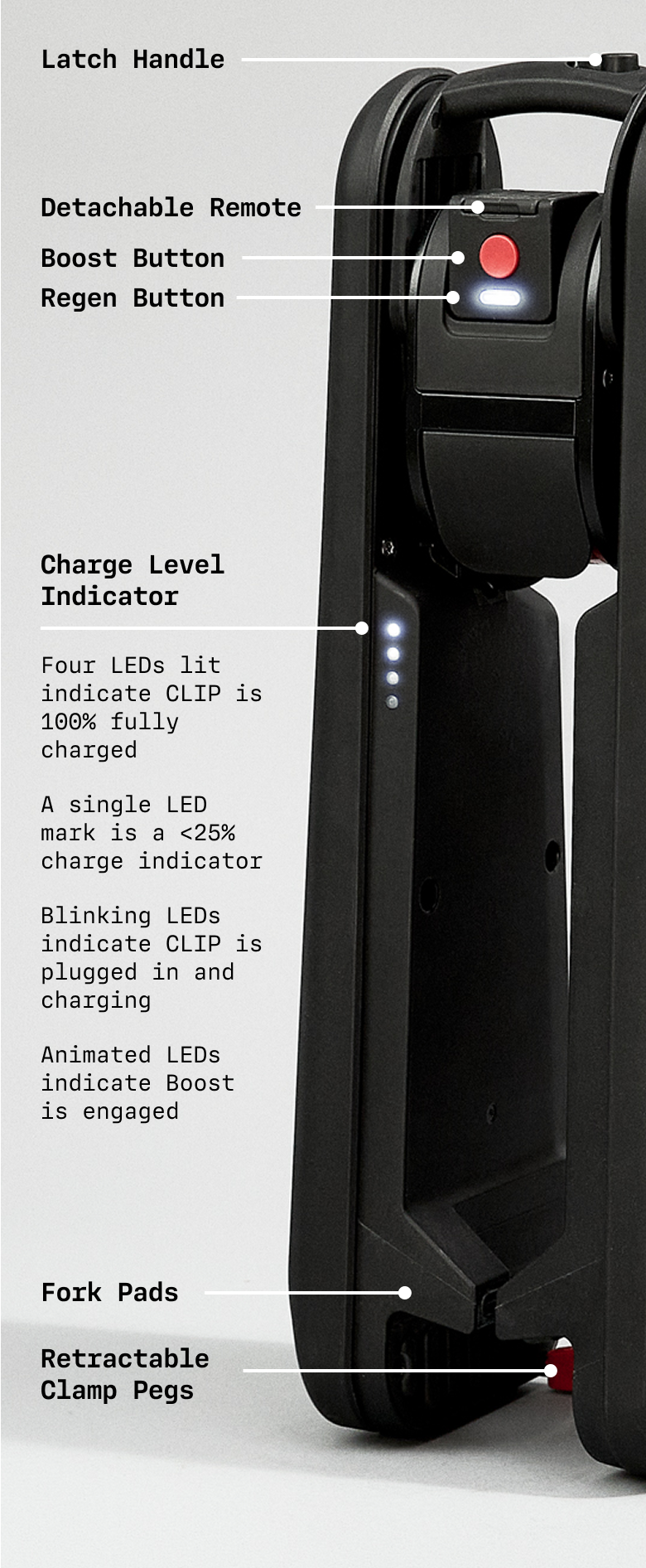

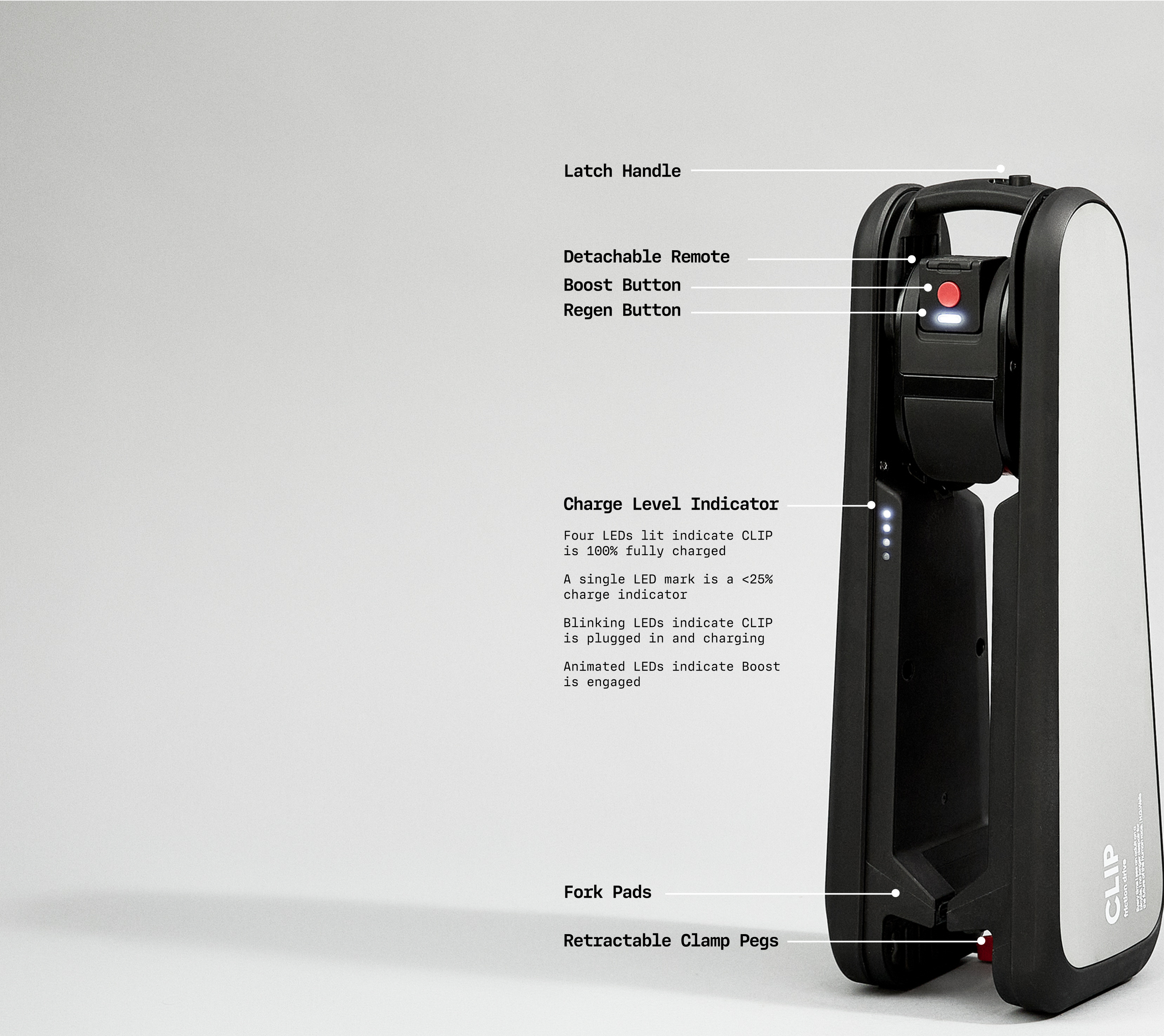

Remote LED Quick Guide & CLIP Anatomy

Remote LED Quick Guide & CLIP Anatomy

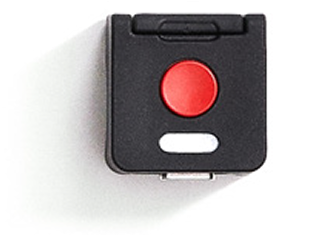

White

When Remote is fully charged

Yellow

Remote is re-pairing with CLIP after docking

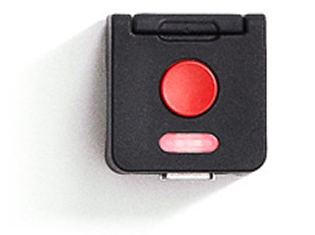

Red

CLIP Battery is low & needs to be recharged OR Regenerative Braking in use while riding

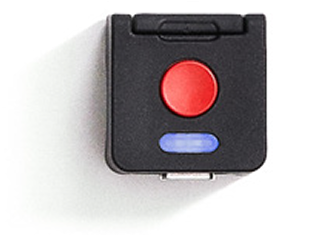

Blue

Remote is charging while docked

Green

CLIP is charging & remote is undocked

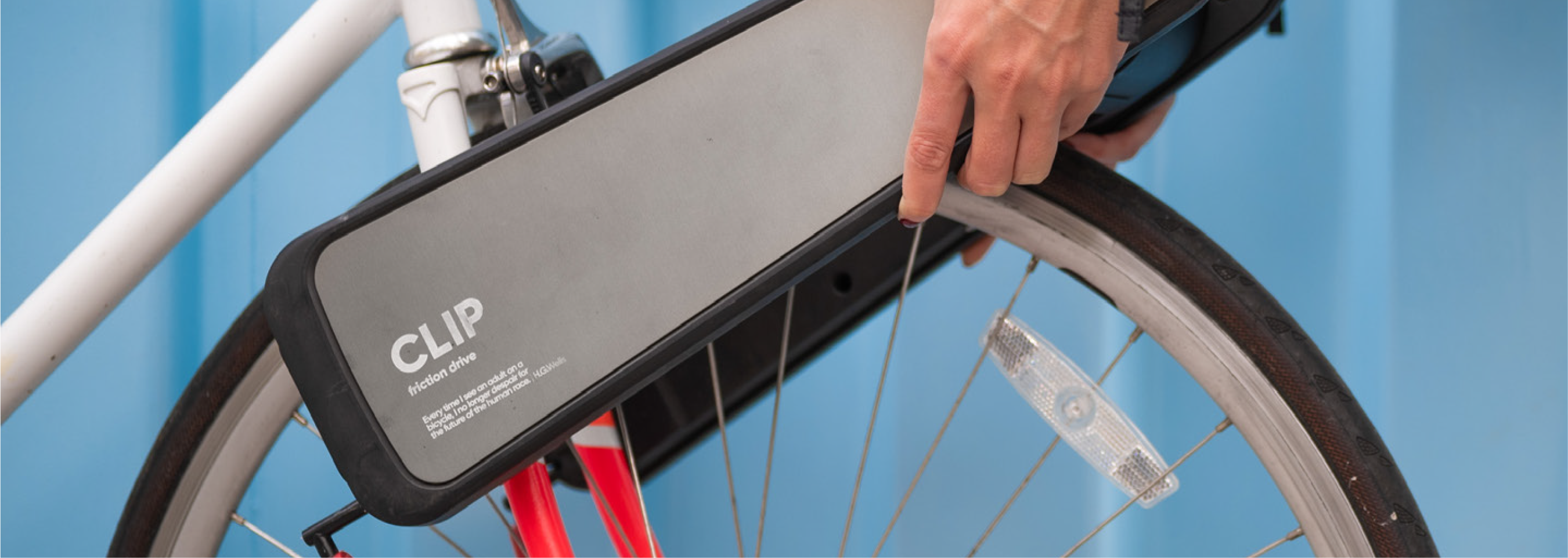

How to attach CLIP

img img

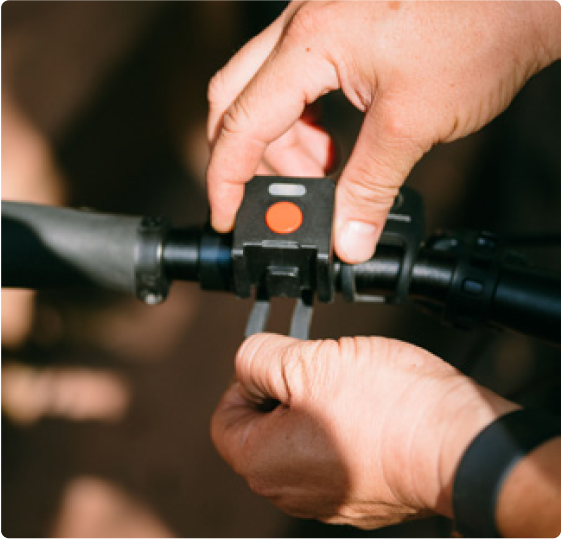

Remote

Undock remote and strap it on the handlebar so your thumb can reach the Boost button while you’re riding.

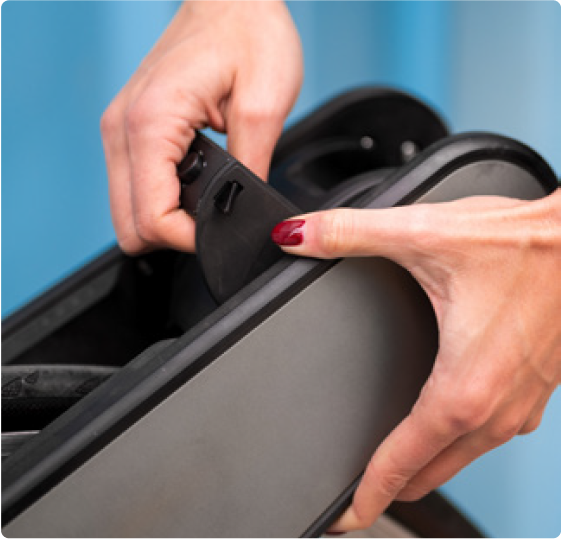

Unlatch CLIP

Unlatch the handle & rotate it forward to retract the clamp pegs.

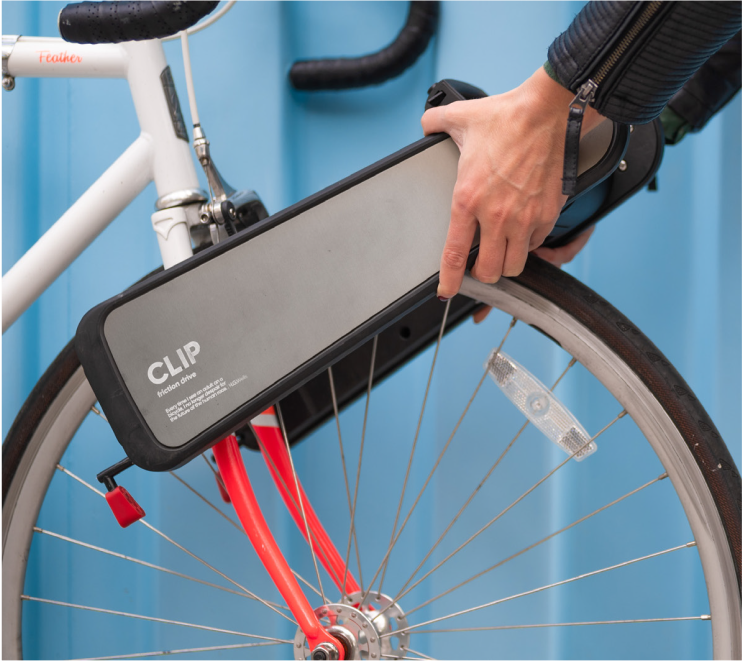

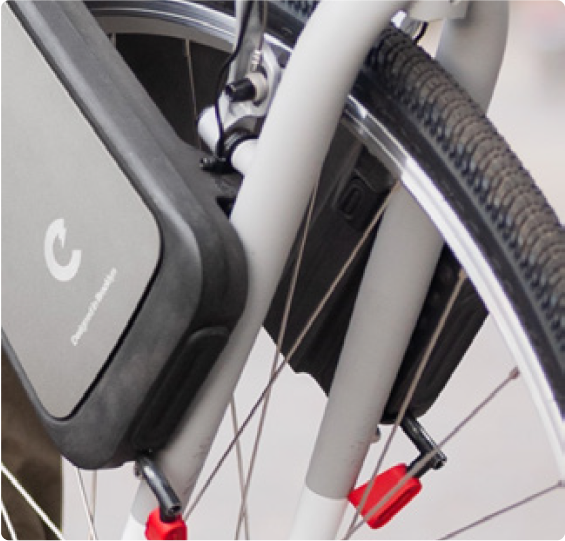

Position CLIP

Position CLIP over the front wheel so the fork pads are resting on the bicycle fork & the red roller is resting on the wheel.

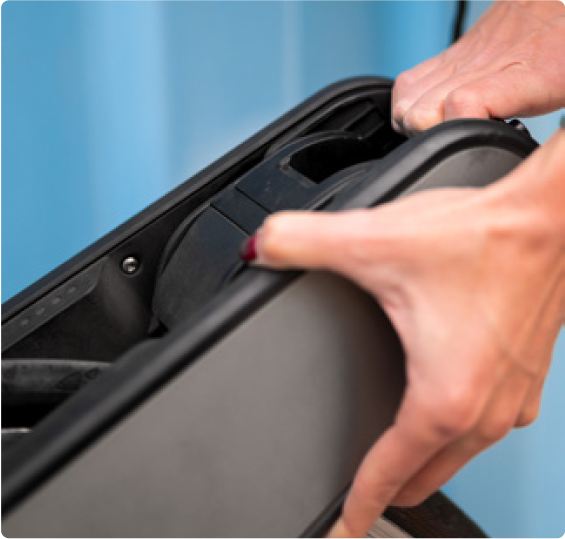

Attach CLIP

While you have CLIP positioned correctly, pull handle out towards yourself until it clicks in place.

In case you are having any issues...

Our CEO, Som, personally demonstrates how to attach your CLIP to your bike. With his expert guidance,
you can easily follow along and ensure a smooth installation process.

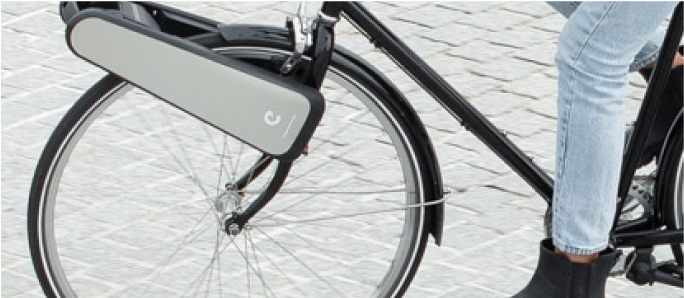

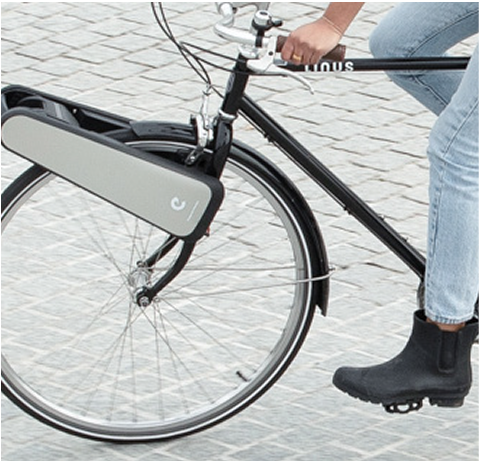

Riding with CLIP

Riding with CLIP

Remote

Undock remote and strap it on the handlebar so your thumb can reach the Boost button while you’re riding.

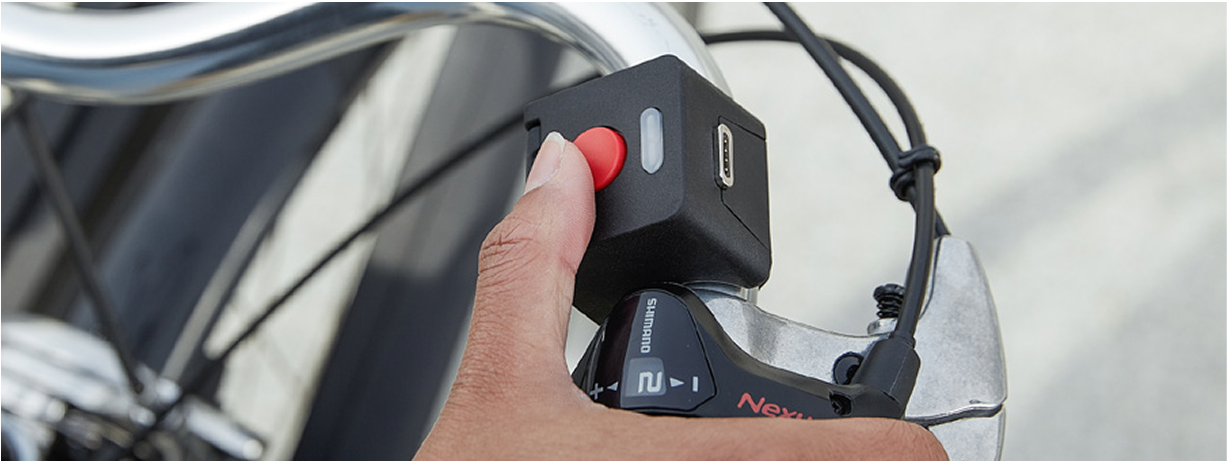

Boosted Ride

Press the red button on the remote to engage the boost while pedaling at the same time. Hold down the Boost button for as long as you need the assist.

Regenerative Braking

Press and hold the white pill shaped button/LED while going downhill to slow your speed and capture the energy back into your battery. The button will glow red when pressed. Use in conjunction with bike brakes.

Safety Notes

Please Note:

Do not attach CLIP to the rear wheel When the remote is undocked, the CLIP unit is awake.

Do not try to rotate the motor with your fingers while unit is unattached.

Choose CLIP
Compatibility
Pre-ride Checks
While Riding
Make sure your bike is compatible with CLIP.
The red retractable clamp pegs should be horizontal while gripping your fork.
Make sure your bike is compatible with CLIP.
Please contact us if you have any doubt.
The red roller should be centered on your wheel.
Slow down for bumps. Try and avoid going over large bumps at high speeds. CLIP is not designed for off roading.
Do not use CLIP on a bike that has a suspension fork.
Tire pressure should be above 60 PSI
Don’t use regenerative braking while going down a bumpy road.
Make sure your bike is compatible with CLIP.
Your normal bike brakes should be functioning well.
Make sure your bike is compatible with CLIP.

Please Note:

Do not attach CLIP to the rear wheel When the remote is undocked, the CLIP unit is awake.

Do not try to rotate the motor with your fingers while unit is unattached.

Choose CLIP

CLIP’s 12 month
limited warranty

First 6 months

Full Support

Any manufacturing glitches?

Don’t worry, we’re here to help. If you notice any issues in materials or how your CLIP was made, we’ve got your back.

We’ll either fix your CLIP or replace it with a new one or a refurbished one that’s in a similar or better condition as your CLIP. And we’ll take care of all the shipping costs!

Next 6 months

Continued Care

We’re still here for you!

If you find any manufacturing issues from the 7th to the 12th month, we’re on it.

We’ll fix your CLIP at no charge, using new or refurbished parts. Please note that there won’t be complimentary shipping during this period.

Authorized Dealers

Our Authorized Dealers

Note:

This warranty is all about manufacturing defects. It doesn’t cover things like accidents, wear and tear from your awesome rides, or if your CLIP’s been altered or repaired by someone not authorized by us. It’s valid for CLIPs bought directly from us or our authorized dealers.

Caring for CLIP

Cleaning

CLIP can be wiped clean with a microfiber cloth and soapy water

Charging

Connect the CLIP charger to your CLIP and plug into a nearby outlet.

Storing

Dock the remote into CLIP. Charge up to 75%. Store in a cool dry place.

Cleaning

CLIP can be wiped clean with a microfiber cloth and soapy water

Charging

Connect the CLIP charger to your CLIP and plug into a nearby outlet.

Storing

Dock the remote into CLIP. Charge up to 75%. Store in a cool dry place.

Frequently Asked
Questions
What is CLIP?
CLIP is a portable propulsion device – designed to instantly upgrade any bike including a shared bike to an e-bike without any tools at a fraction of the price of a traditional e-bike.
How can I be sure CLIP will fit my bike?
We made CLIP to be compatible with all city, road and hybrid bikes with a 26” to 28” front tire/tyre and any fork stem thickness. CLIP is not compatible with suspension fork.

We’ll be happy to schedule a demo for you if you live in Brooklyn.

Best is to share a photo of your bike with us on this chat so we can confirm fit. Preferably with the name/model. Additionally - please feel free to check this compatibility database if you bike is listed on this. https://clip.bike/pages/compatibility
What about shipping costs for repair during the Warranty?
We’ll take care of all the shipping costs for the first 6 months.
What's not included in the Warranty?
This warranty is all about manufacturing defects. It doesn’t cover things like accidents, wear and tear from your awesome rides, or if your CLIP’s been altered or repaired by someone not authorized by us. It’s only valid for CLIPs bought directly from us or our authorized dealers.
What type of battery does CLIP use, and what are its features?
CLIP utilizes a Lithium-ion battery pack, which is specially designed and optimized with several advanced features to enhance performance and safety. Optimized Lithium Footprint: Designed for minimal environmental impact. Regenerative Charging: Recaptures energy during downhill riding or braking, enhancing efficiency. Dedicated Battery Management System: Each pack has its own system to maintain battery health and safety by regulating charging and discharging. These features ensure the CLIP battery is efficient, safe, and eco-friendly.
View All FAQ

Manufacturing & Logistics Impact

CLIP is a product of common sense, producing a fraction of the waste of a typical e-bike, with sufficient power & range for 80% of all urban commutes, and an affordable price point to redefine urban mobility for a smarter, more sustainable future.

We’re commited to building CLIP with a minimal manufacturing impact. Today CLIP’s manufacturing emissions impact is 4X less than that of an e-bike and 38X less than an electric car.

CLIP’s shipping and logistics impact is 1/50th of a typical e-bike.

Climate Mission

We worked with NYSP2I to conduct a high-level comparative analysis of the potential energy use and GHG impact for CLIP’s technology versus multiple modes of transportation such as cars, public transit, and walking.

The results found the potential exists to reduce the annual GHG emissions associated with NYC commuters by approximately 12,900 MT CO2e.

165X

Gasoline Car

251.0g Co2 /passenger km

18X

Bus

28.0g Co2 /passenger km

30X

Tesla Model 3

46.7g Co2 /passenger km

23X

Subway Metro

36.4g Co2 /passenger km

X

CLIP & Bike

1.5g Co2 /passenger km

1

165X

Gasoline Car

251.0g Co2 /passenger km

3

30X

Tesla Model 3

46.7g Co2 /passenger km

2

18X

Bus

28.0g Co2 /passenger km

4

23X

Subway Metro

36.4g Co2 /passenger km

5

X

Subway Metro

36.4g Co2 /passenger km
